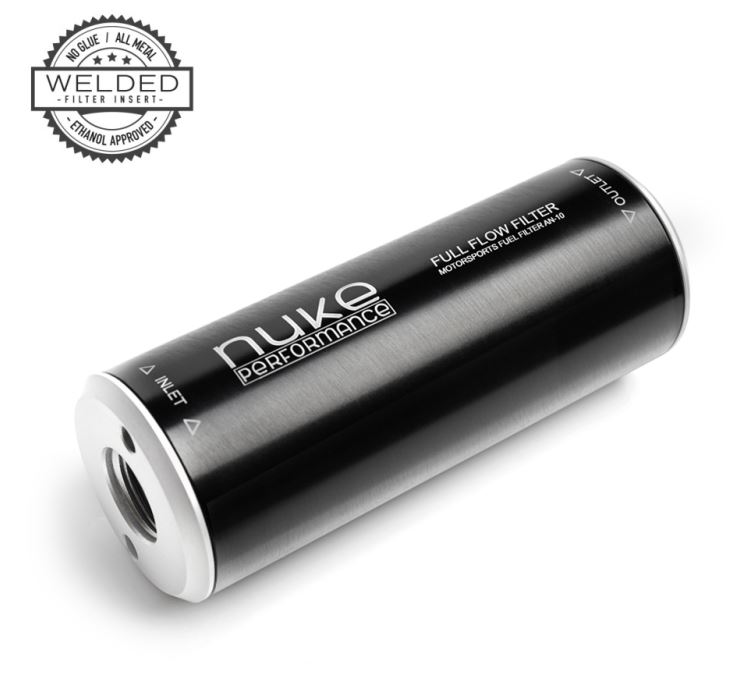

Nuke Performance slim fuel filter AN10 is a compact high-flow inline fuel filter for motorsport, tuning and high-performance fuel systems where space is limited. This version is supplied with a 10 micron welded stainless steel filter element and is suitable as a fine filter after the fuel pump.
The filter housing is made from lightweight aluminium with a slim design of only 55 millimetres in diameter. AN10 ORB inlet and outlet ensure high flow capacity and make the filter flexible to adapt with suitable AN adapters and fittings.
The welded 10 micron stainless steel filter element is made without glue and is therefore suitable for aggressive fuels such as ethanol, methanol and E85. The filter element can be cleaned and reused, making the filter practical for motorsport and performance fuel systems with high requirements for reliability and filtration.
Specifications:
Type: Complete inline fuel filter Slim
Inlet connection: AN10 ORB
Outlet connection: AN10 ORB
Filter element: 10 micron stainless steel
Fuel compatibility: Petrol, diesel, ethanol, methanol and E85
Length: 144 millimetres
Diameter: 55 millimetres
Filter area: Over 60 square inches
Flow capacity: 750 LPH
Working pressure: 8 bar
Maximum pressure: 21 bar
Pressure drop: Approx. 0.15 bar
Filter housing: Aluminium
Part number: 200-02-203
