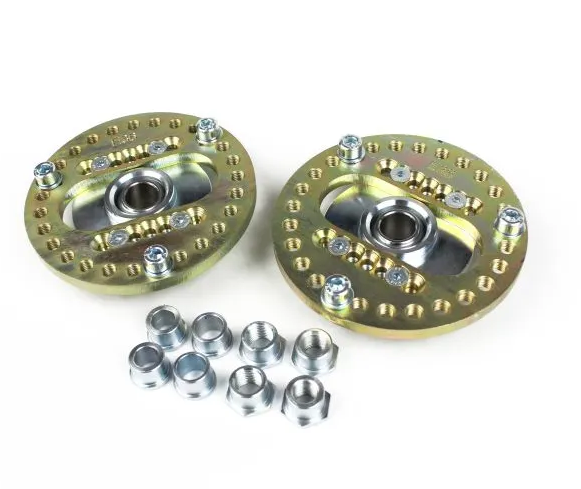

BMW E24/E28/E30/E32/E34 3D camber plates V3

These camber plates are mounted at the top of the strut and allow adjustment of the front wheels’ camber and caster angle, so the front axle geometry can be adapted to the car’s setup. This makes them relevant for cars with lowered suspension, coilovers, aggressive wheel setup or the need for more precise steering and better steering wheel self-centring.

The recessed 3D V3 construction provides better use of the adjustment range in the camber plate, allowing the wheel angles to be fine-tuned more effectively. With correct setup, the car can achieve more controlled steering, better front-end response and more optimal wheel positioning during hard driving.

The camber plate is made from 8 millimetre S355 structural steel, CNC-milled and yellow zinc-plated for better corrosion protection. The bearing housing is CNC-turned from high-quality structural carbon steel and additionally zinc-plated for better durability. The bearing is maintenance-free, made from stainless steel and developed for high loads with reduced bearing play.

The mounting bolts are zinc-plated M8 bolts with fine thread. Flange nuts and Schnorr lock washers are included, helping to secure the assembly against loosening under load.

Note: Threadlocker must be used when mounting the bolts to the camber plate.
