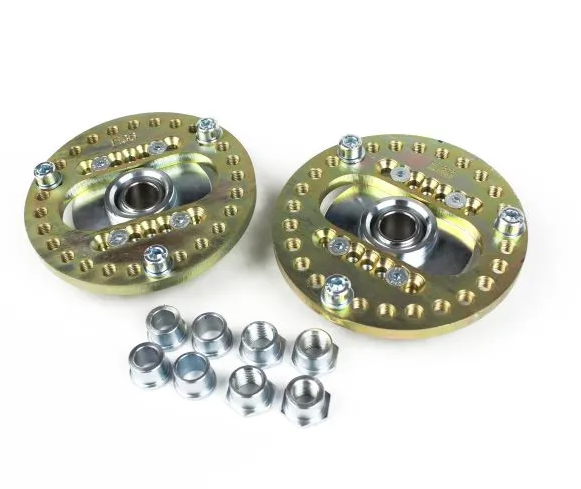

BMW E36/E38/E82/E90/E92/E93 3D camber plates V3

These camber plates are mounted at the top of the strut and allow adjustment of the front wheels’ camber as well as KWSZ/caster. This makes it possible to optimise the front axle geometry, giving the car better steering feel, more controlled wheel positioning and better options for individual setup.

The 3D V3 construction is especially relevant for cars with aggressive setup, lowered suspension, coilovers, increased steering angle or drift setup, where standard top mounts do not provide enough adjustment options. With correct adjustment, more effective steering, better steering wheel self-centring and more precise front-end response can be achieved.

The camber plate is made from 8 millimetre S355 structural steel, CNC-milled and yellow zinc-plated. The bearing housing is CNC-turned from high-quality structural carbon steel and additionally zinc-plated for better durability. The bearing is maintenance-free, made from stainless steel and developed for high loads with reduced bearing play.

The mounting bolts are zinc-plated M8 bolts with fine thread. Flange nuts and Schnorr lock washers are included, helping to secure the assembly against loosening under load.

Note: Threadlocker must be used when mounting the bolts to the camber plate.

Fits the following:
BMW E36
BMW E36 Compact
BMW E38
BMW E82
BMW E90/E92/E93
BMW Z3 E36
