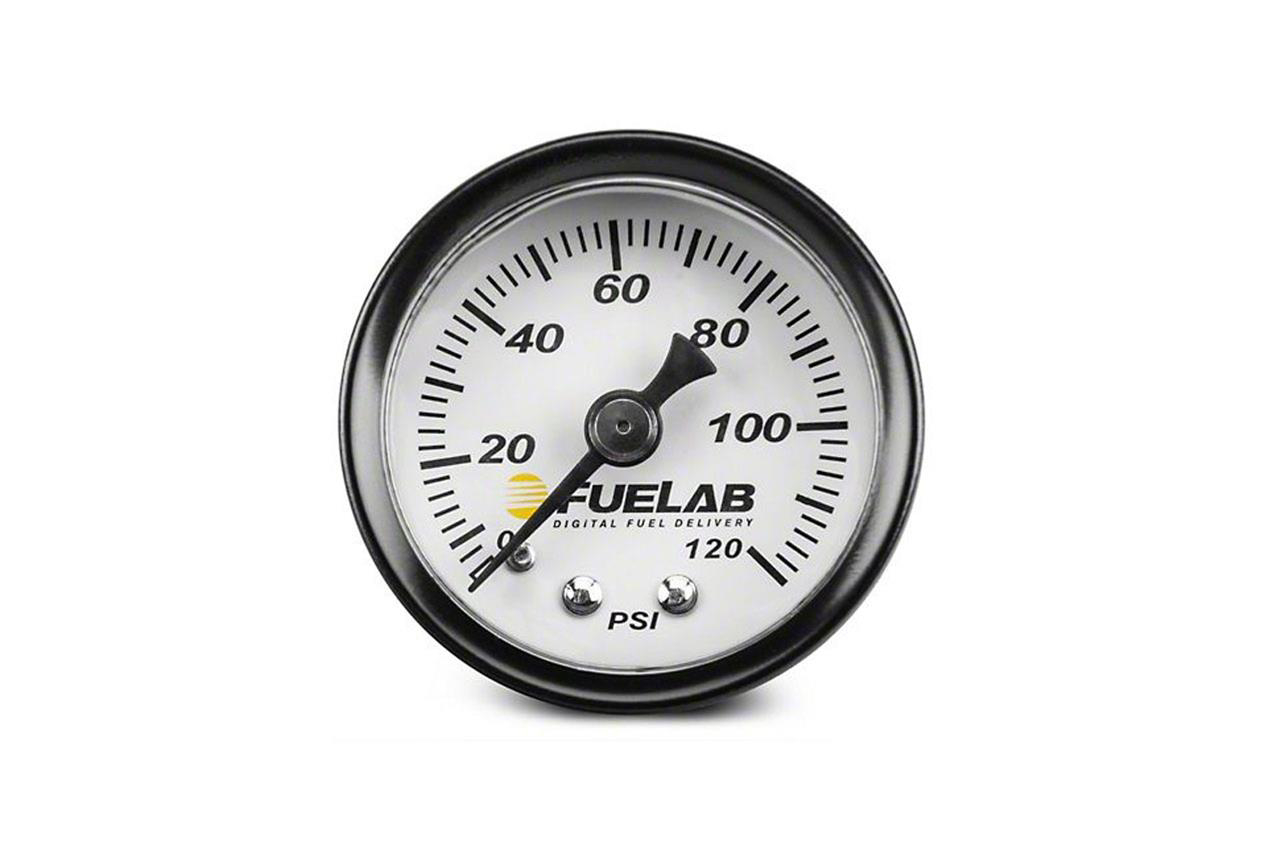

Fuelab fuel pressure gauge 0-120 PSI

Analogue Fuelab fuel pressure gauge for EFI fuel systems. The gauge has a measuring range of 0-120 PSI and is designed for monitoring fuel pressure in injection systems where stable and correct fuel pressure is important for engine performance and reliability. The measuring range makes it suitable for most EFI systems on road cars, performance cars and motorsport projects.

The pressure gauge mounts directly into a 1/8" NPT thread and is typically used on fuel pressure regulators or fuel rails with a gauge port. The compact 38 millimetre diameter makes it easy to integrate in the engine bay where quick visual fuel pressure control is required.

Note:
The gauge is intended for engine bay installation and should not be installed in the cabin. If fuel pressure needs to be monitored inside the car, an electric pressure sensor or electronic gauge system is recommended.

Specifications:
Type: Analogue fuel pressure gauge for EFI
Measuring range: 0-120 PSI
Diameter: 38 millimetres / 1.5"
Thread: 1/8" NPT
Mounting: Direct mounting
Application: EFI fuel systems and injection
Position: Fuel pressure regulator or fuel rail with gauge port
